Timber Frame Residential Building

Description

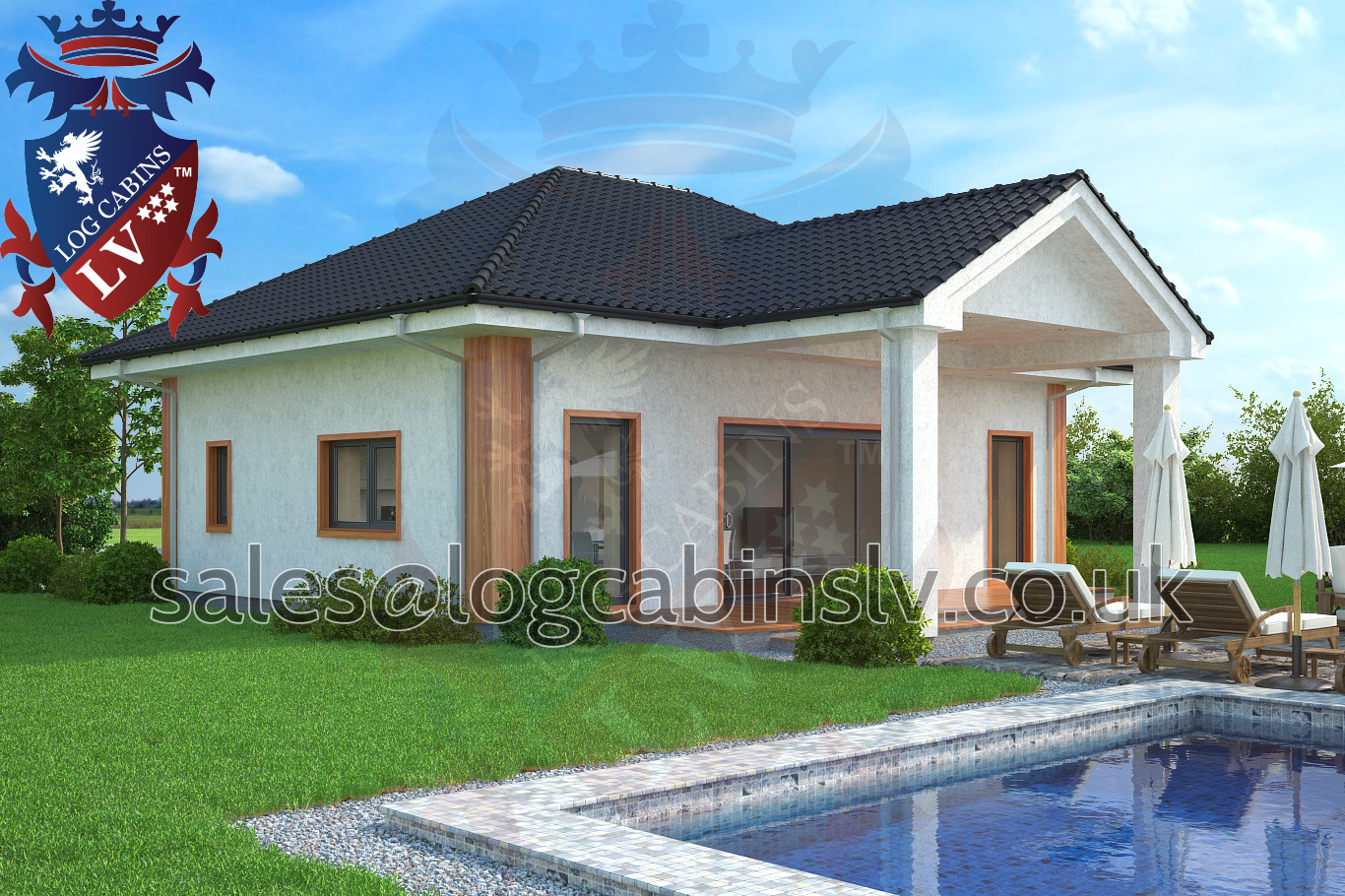

Passive Range – Passive Timber Frame Building Hanworth 10.5 m x 8.0 m rtfblv2225

Timber Frame Building size – 10.5m x 8.0m
Timber Frame Building size – 34.44ft x 26.24ft

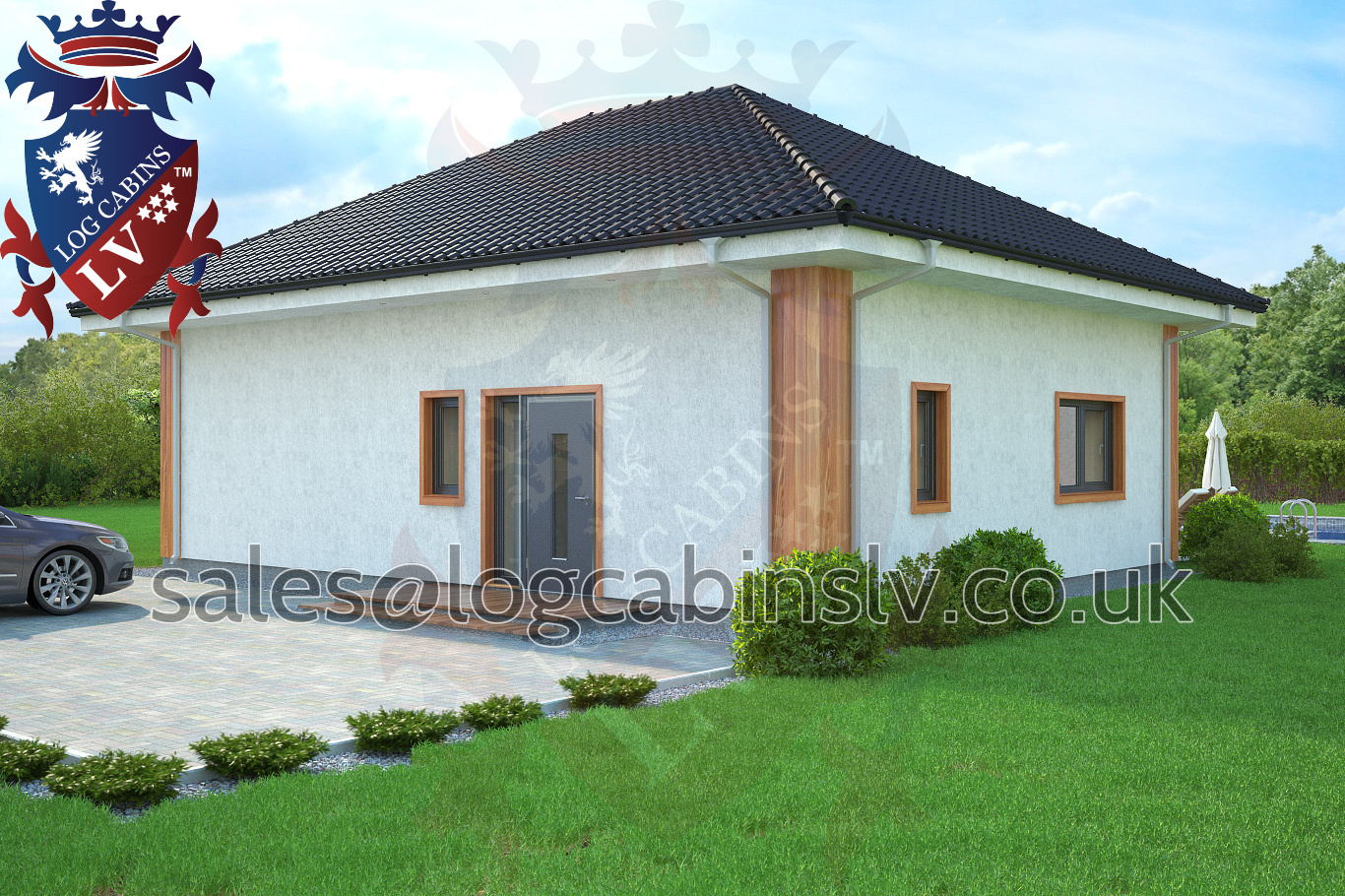

Entrance Decking – 3.1m x 1.7m

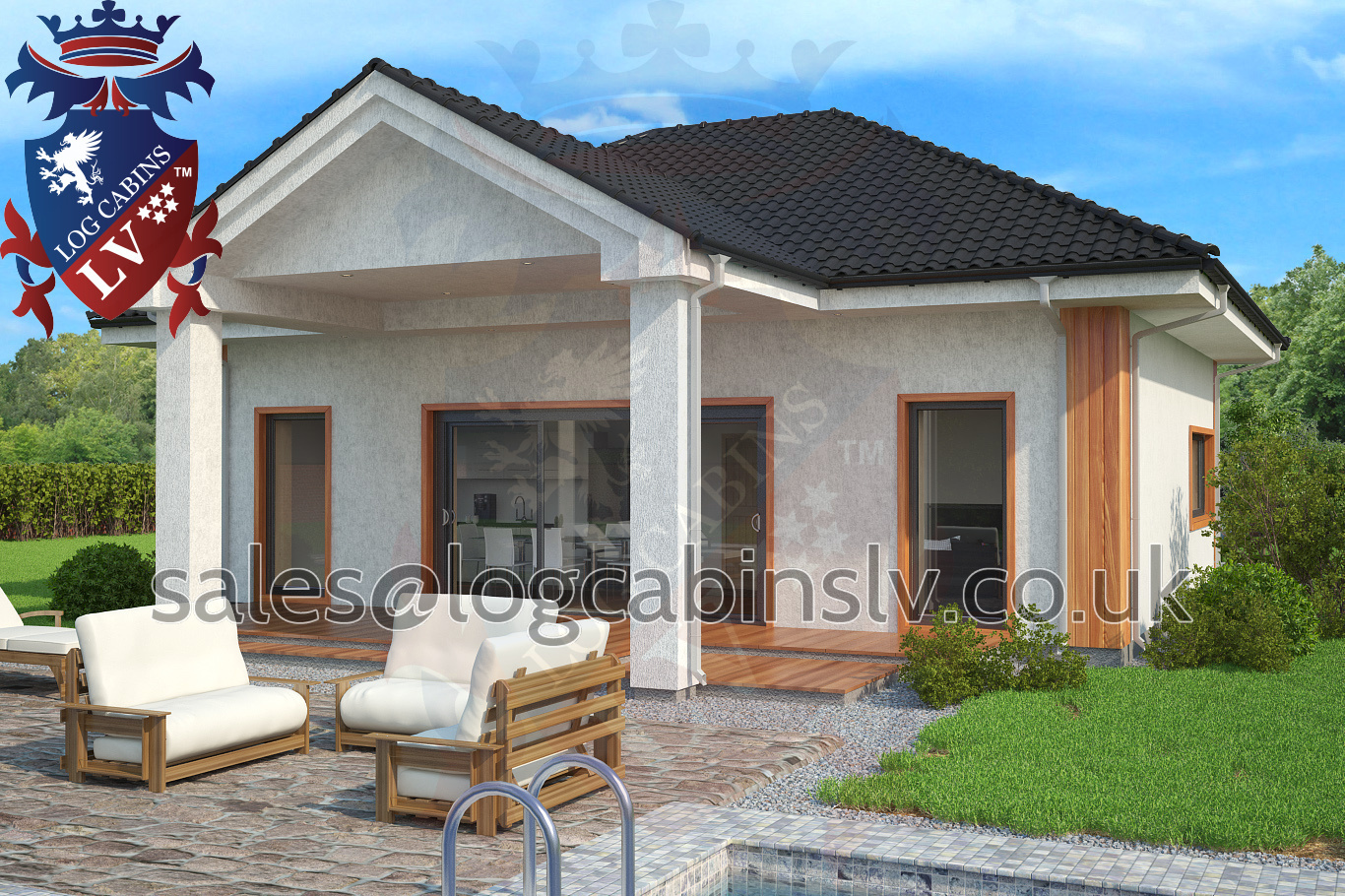

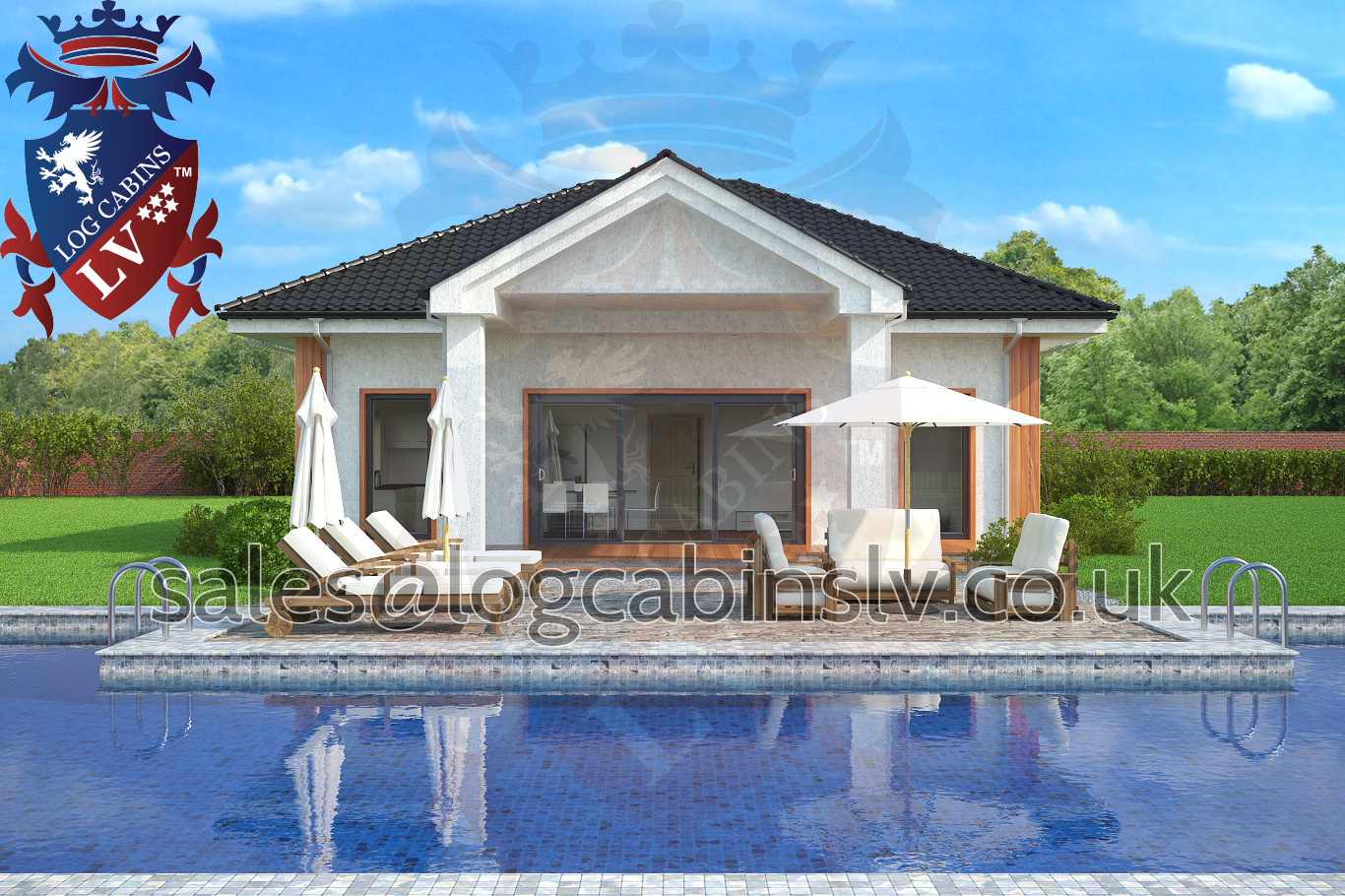

Pool side Decking 8.5m x 3.3m
Overhang – 3.6m
Overhang around building – 0.75m

Residential Door size – 1x 110cm x 200cm (outside)
Residential Door size – 4x 87cm x 193cm (inside)

Residential Window size – 2x 250cm x 110cm
Residential Window size – 2x 100m x 220cm
Residential Window size – 1x 50cm x 200cm
Residential Window size – 2x 62cm x 110cm
Residential Window size – 1x 175cm x 110cm
Residential Window size – 2x 400m x 220cm

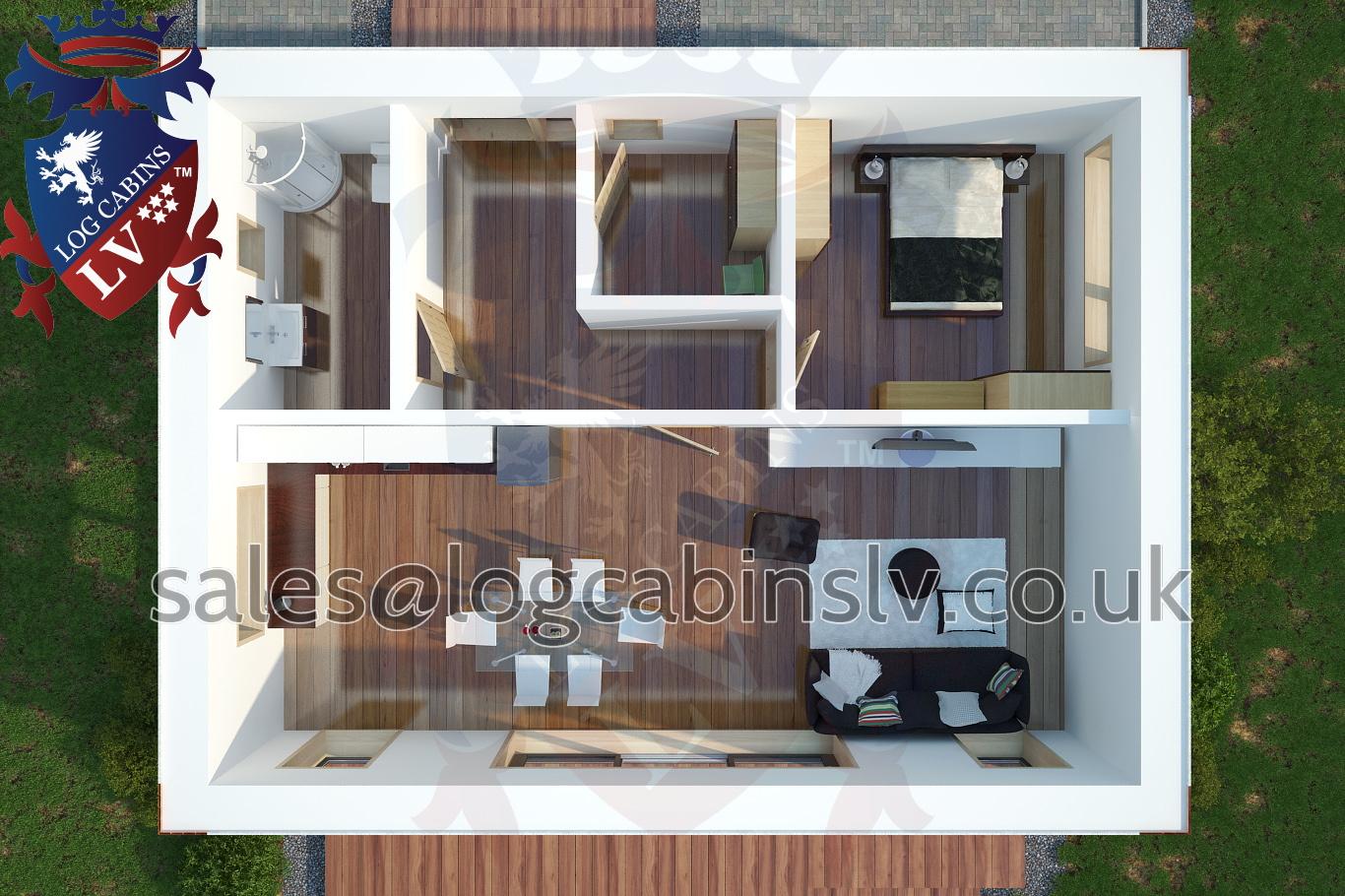

Entrance – 3.2m x 1.8m
Bathroom – 3.2m x 1.8m
Utility – 2.0m x 2.0m
Bedroom – 3.2m x 3.5m

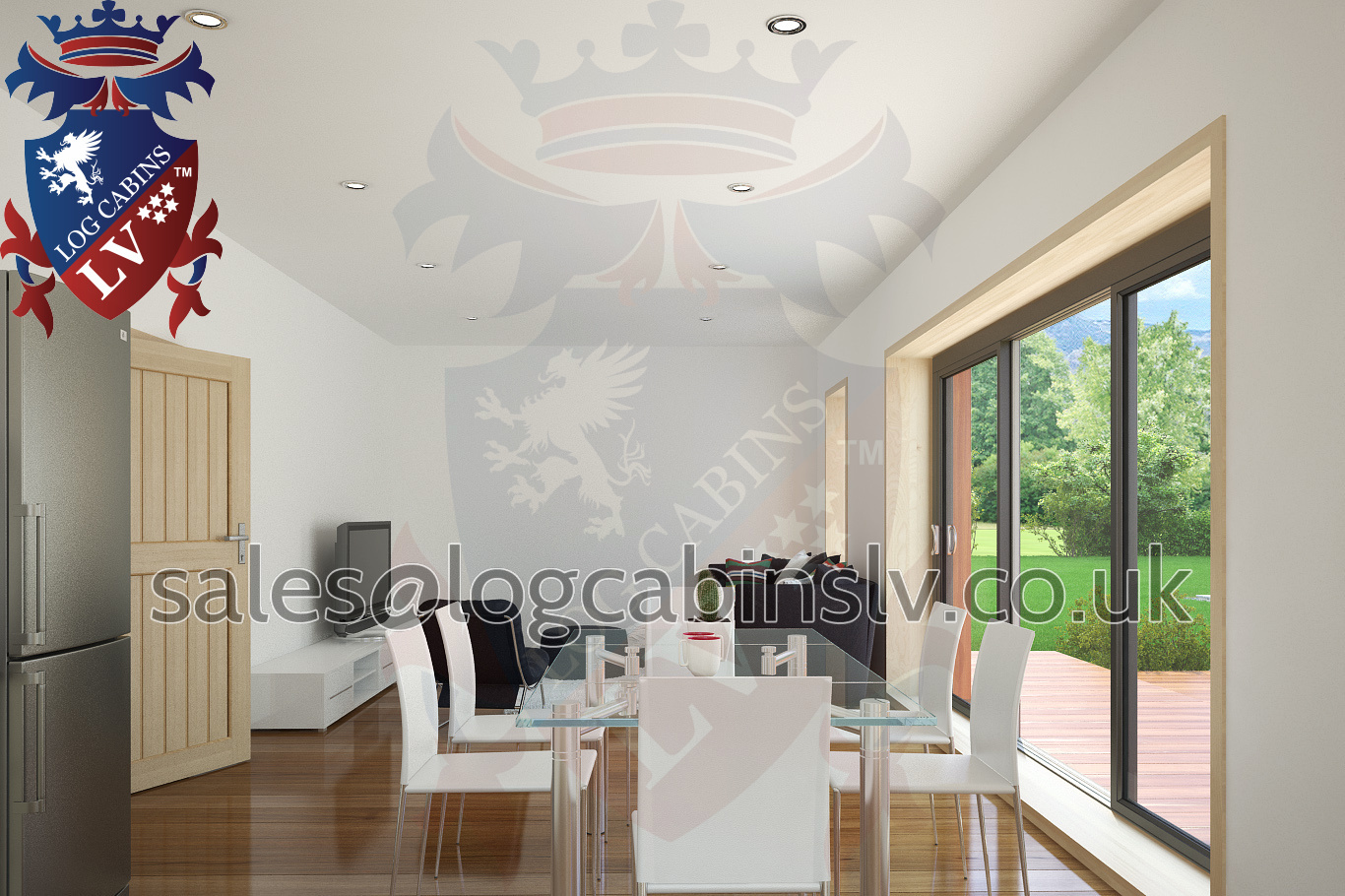

Lounge/Dining/Kitchen – 9.56m x 3.71m

External Ridge height – 5.9m
Internal Ceiling height – 2.65m
Roof Thickness – 40cm
Wall thickness – 47cm

Additional information

Width

10.5

Depth

8

Cabin Sizes

Over 6.0m Wide
